Estimated Lead Time: 6-8 Weeks

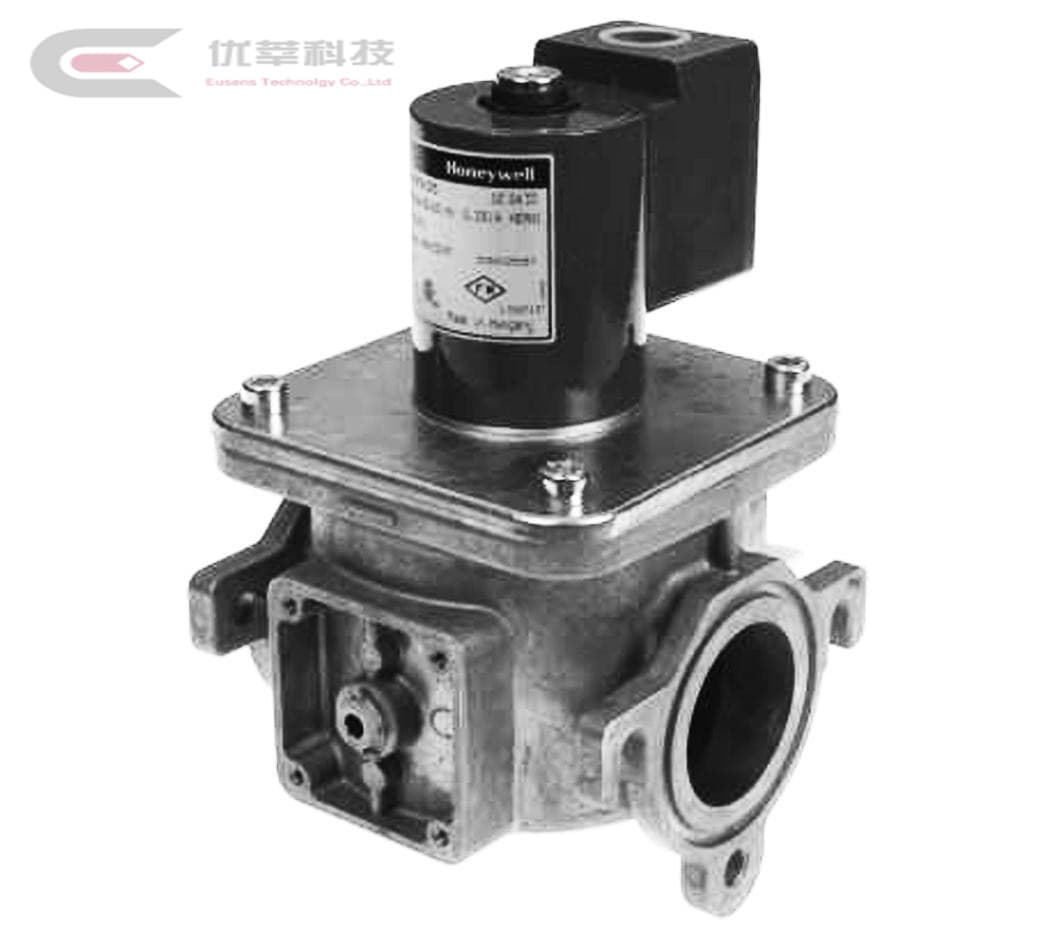

V4297A10132" (51MM) INTERNAL OPENING (HIGH CAPACITY)V4297A are normally closed solenoid gas valve. Suitable for use on furnaces, ovens, atmospheric burners, commercial water heaters, roof-top make-up air units, powerburners, and commercial/industrial boilers.V4297A are used with 120 Vac controllers.Positive close off of gas flow when de-energized.High valve spring force allows up to 0.7 psi back pressure at valve seat.No inlet pressure influence at valve seat.Inlet pressure changes do not affect ability to close valve.Low operating noise.Low rush-in current.Upstream and downstream taps allows tapping and testing pressure points.For use with the Integrated Valve Train.Accepts C6097 Pressure Switch mounted directly to flange (upstream pressure tap only).Dimensions (in.): 10 1/4 in. high x 5 3/4 in. wide x 5 5/8 in. deepDimensions (mm): 260 mm high x 147 mm wide x 143 mm deepMaterials: Body--Die-cast aluminumMounting: Directly bolted to Integrated Valve Train ComponentsFrequency: 50 Hz; 60 HzApprovals, Underwriters Laboratories Inc.: Listed: File No. MH18476, V1, S1 - Guide No. YIOZApprovals, CSA: Certificate No. 158158-1154280, Guide No. C3371-03, 04, 83Electrical Connections: Screw terminalsVoltage: 110 Vac; 120 VacOperating Temperature Range (F): -40 F to +130 FOperating Temperature Range (C): -40 C to +54 CApprovals, Swiss RE: AcceptableCurrent Ratings: 0.5 max amps at rated Vac/HzBody Pattern: Straight-through, non-offsetPressure Ratings (psi): 5 psiPressure Ratings (kPa): 34.5 kPaPressure Tapping: Inlet and outlet pressure taps-- 1/4 in. NPTType of Fuel: Air; natural; manufactured; mixed; LPPipe Size (inch): 3/4 in. to 2 in.Pipe Size (DN): DN20 or DN25 or DN32 or DN40 or DN50Capacity (cfh): 1190 cfh; 1460 cfh; 2260 cfh; 2735 cfh; 3060 cfhValve Opening Time: less than 1 secValve Closing Time: less than 1 secFlanges: Required, Order SeparatelyIntegrated Valve Train Body Size: Small body, large flowShipping Weight: 5 kg
