STR82D-21CC3B0-AFCAA21A0-A-AH0-11S-A-F1-00A0

Estimated Lead Time : 6-8 Weeks

Manufacturer : Honeywell

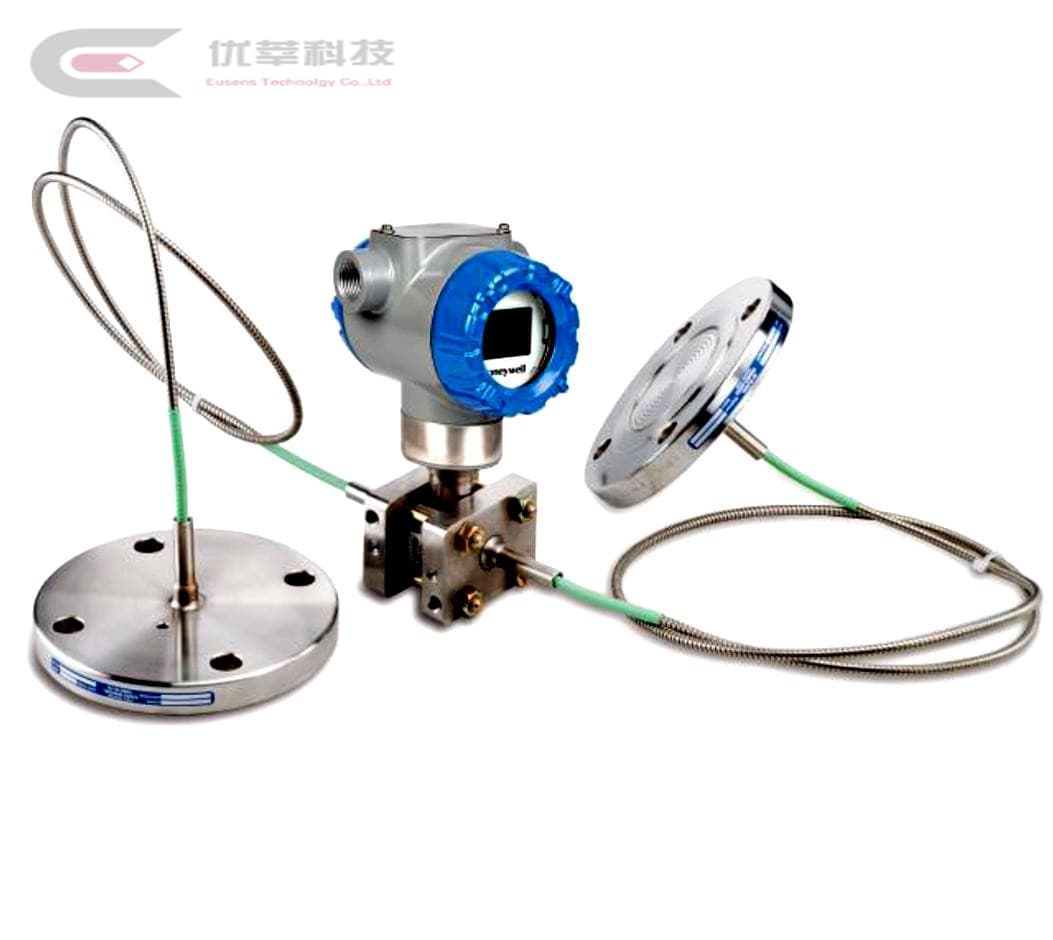

STR82D-21CC3B0-AFCAA21A0-A-AH0-11S-A-F1-00A0 Honeywell STR800 SmartLine Remote Diaphragm Seals Specification 34-ST-03-88

Measurement Range Std Accuracy STR82D URL : 400 (1000) LRL : -400 (-1000) Max Span : 400 (1000) Min Span : 4 (10) Units : " H2O (mbar)

Meter Body & Capillaries Number of Seals : 2 Remote Seals Primary Fill Fluid : Silicone Oil 200 Dual Head DP : 316 SS (bolt-on heads)

Bolts and Nuts for Transmitter Heads : Carbon Steel Bolts and Nuts

Secondary Fill Fluid (capillary & seal) : Silicone Oil 704

Connection of Remote Seal to Meter Body : Capillary Length : 10 feet, 3.0 m

Seal Option : None Seal Type : Flush Flanged Seal

Diaphragm Diameter : 3.5" Flange Size : 3" Flange Pressure Rating 1 : ANSI Class 300

Wetted Material : Diaphragm : 316L SS Upper Insert : 316L SS Selection : AA

Non-Wetted Material (upper): 316L SS

Seal-Capillary Connection : Center Seal

Calibration Rings : None

Flushing Connections : None

Agency Approvals (see data sheet for Approval Code Details) : FM Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof

Material : Polyester Powder Coated Aluminum

Connection : 1/2 NPT

Lightning Protection : None

Output/ Protocol

Analog Output : 4-20mA dc

Digital Protocol : HART Protocol

Customer Interface Selections : None

Application Software: Standard Diagnostics

Output Limit, Failsafe & Write Protect Settings

Write Protect : Disabled

Fail Mode : High > 21.0mAdc

High & Low Output Limits3: Honeywell Std (3.8 - 20.8 mAdc)

General Configuration : Factory Standard

Accuracy and Calibration

Accuracy : Standard

Calibrated Range : Factory Std

Calibration Qty : Single Calibration

Certifications & Warranty: Calibration Test Report & Certificate of Conformance (F3399)

Mounting Bracket : None

No customer tag

Unassembled Conduit Plugs & Adapters : No Conduit Plugs or Adapters Required

Shipping Weight : 5 Kg
