STG740-E1GC4A-1-D-CHB-11S-A-10A0-00-0000

Estimated Lead Time : 6 - 8 weeks.

Manufacturer : Honeywell

Product No : STG740-E1GC4A-1-D-CHB-11S-A-10A0-00-0000

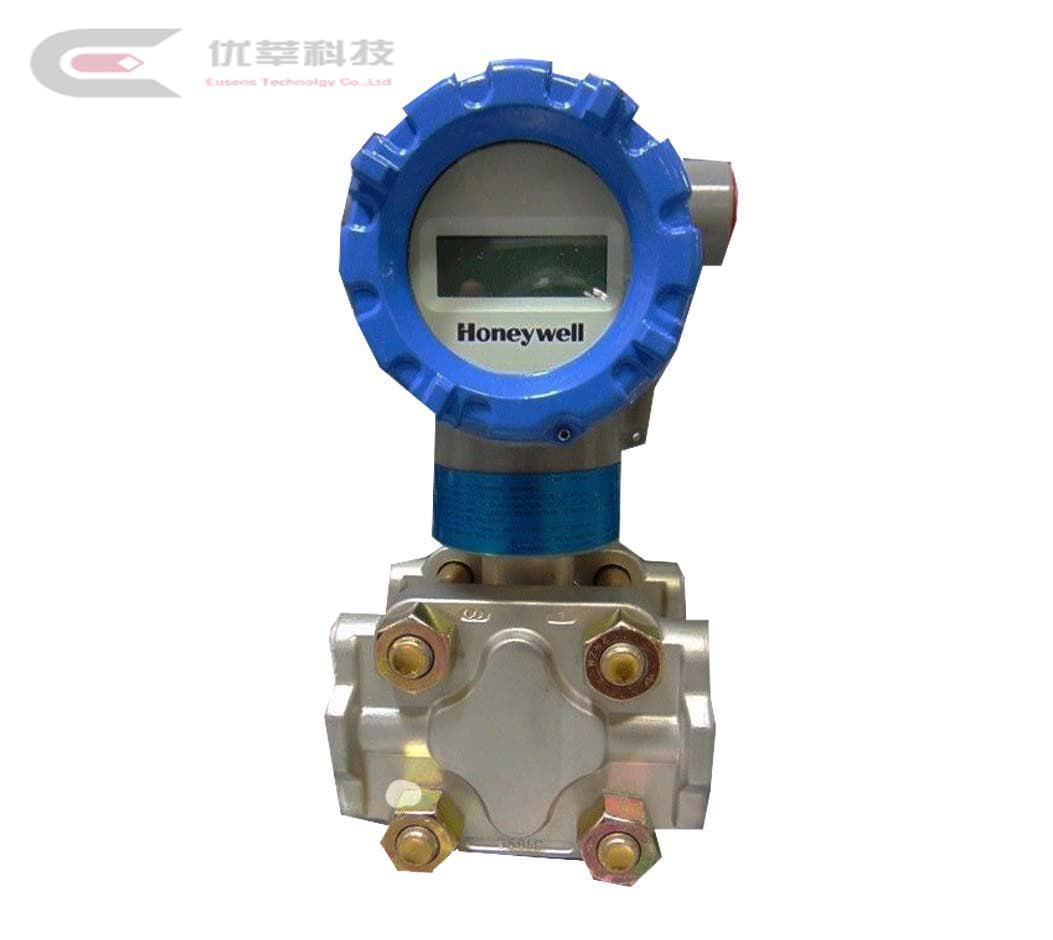

Product Ttype : STG700 Gauge Pressure Transmitter

STG740 : Gauge Dual Head = URL/Max Span : 400(35) , LRL : -14.7 (-1.0), Min Span : 5 (.35), Units : psi (bar)

Process Head/Reference Head Material : E = 316 Stainless Steel

Barrier Diaphragm Material : E = 316L SS

Fill Fluid : 1 = Silicone Oil 200

Process Connection : G = 1/2" NPT (female), Same as Process Head

Bolt/Nuts Materials : C = Carbon Steel

Vent/Drain Type/Location : 4 = Head type : Dual Ended, Vent type : Standard Vent, Location : End, Vent material : Matches Head Materia

Gasket Materials : A = Teflon搴 or PTFE (Glass Filled)

Head/Connect Orientation : 1 = Standard, High Side Left, Low Side Right2 / Std Head Orientation

Approvals : D = IECEx Explosion proof, Intrinsically Safe & Non-incendive

Electronic Housing Material & Connection Type : C = material : Polyester Powder Coated Aluminum, Connection : 1/2 NPT, Lighting protection : yes

Output/ Protocol : H = Analog input : 4-20mAdc, Digital protocol : HART Protocol.

Customer Interface Selections : B = Indicator : basic, Language : EN

Application Software : 1 = Standard Diagnostics

Output Limit, Failsafe & Write Protect Settings : 1 = Write protect : Disabled, Fail : High> 21.0mAdc, High & Low Output Limits : Honeywell Std (3.8 - 20.8 mAdc).

General Configuration : S = Factory Standard.

Accuracy and Calibration : A = Accuracy : Standard, Calibrated Range : Factory standard, Calibration Qty : Single calibration.

Mounting Bracket : 1 = Angle bracket, Carbon steel

Customer Tag : 0 = No customer tag

Unassembled Conduit Plugs & Adapters : A0 = No Conduit Plugs or Adapters Required

Certifications & Warranty : 00 = No additional options

Factory : 0000 = Factory Identification

Dimensions (HxWxD), approx. : 19.88cm x 5.6cm x 12.25cm

Shipping Weight : 8 Kg
