STD870-F1AS4AS-1-C-FHD-11S-B-01A7-F1-0000

STD870-F1AS4AS-1-C-FHD-11S-B-01A7-F1-0000

Honeywell
$2160.00

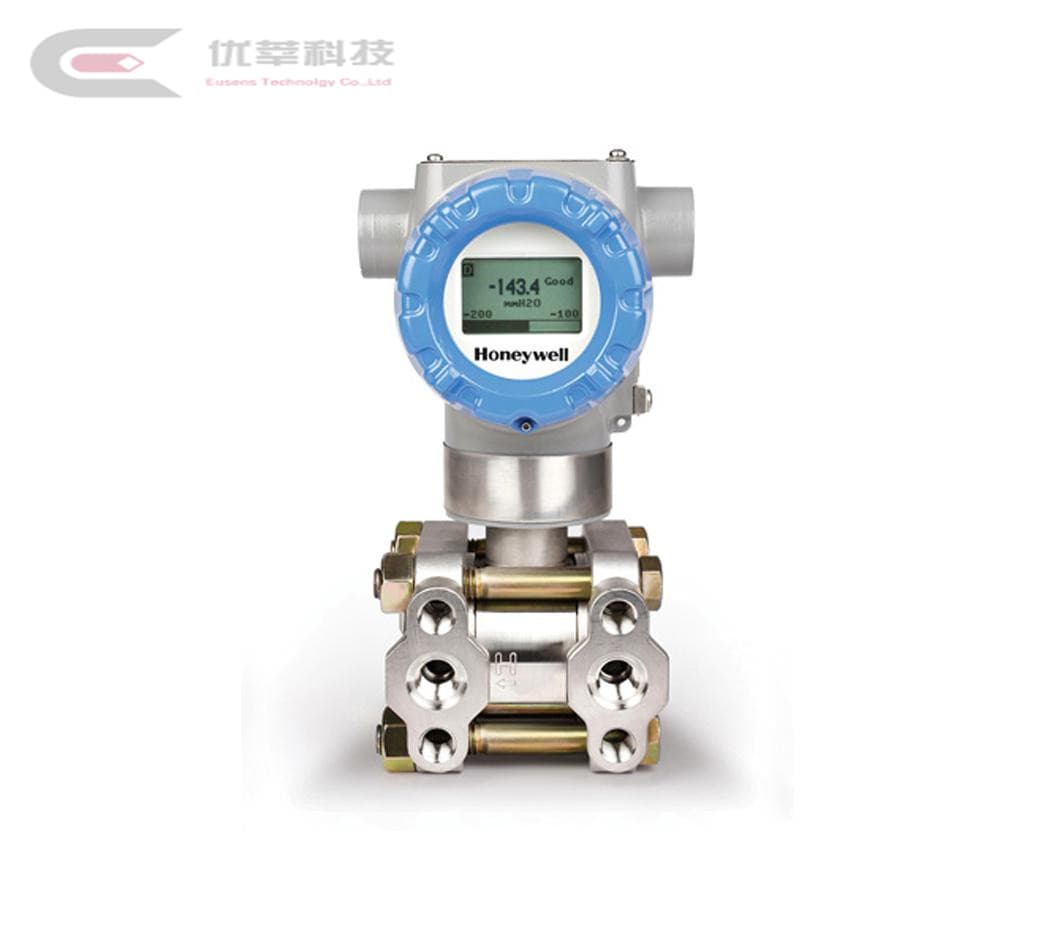

STD870-F1AS4AS-1-C-FHD-11S-B-01A7-F1-0000 -- Honeywell -- STD800 Differential Pressure Transmitter

Product Description

  • Estimated Lead Time : 4 - 8 weeks.
  • Manufacturer : Honeywell
  • Product No. :__TD870-F1AS4AS-1-C-FHD-11S-B-01A7-F1-0000
  • Product type : STD800 Differential Pressure Transmitter
  • Measurement Range : 3000 (210) URL, -100 (-7.0) LRL, 3000 (210) Max span, 30 (2.1) Min span, psi (bar) units.
  • F : Process Head Material = 316 Stainless Steel, Diaphragm Material = Hastelloy C-276.
  • Fill Fluid : 1 = Silicone Oil 200
  • Process Connection : A = None (1/4" NPTF female thread Std)
  • Bolt/Nut Materials. :__ = 316 SS
  • Vent/Drain Type/Location : 4 = Dual Ended Head type, Standard Vent, End location, Matches Head Vent Material.
  • Gasket Material : A = Teflon搴 or PTFE (Glass Filled)
  • Static Pressure. :__ = Standard Static Pressure - 4500 psig (315 bar) except STD810: 50 psi (3.5 bar)
  • Head/Connect Orientation : 1 = Standard, High Side Left, Low Side Right2 / Std Head Orientation Meter Body & Connection Orientation
  • Approvals r : C = ATEX Explosion proof, Intrinsically Safe & Non-incendive
  • Electronic Housing Material & Connection Type : F = 316 Stainless Steel (Grade CF8M) material, M20 connection, None lightning protection.
  • Output/ Protocol : H = 4-20mA dc Analog Output, HART Protocol Digital Protocol
  • Customer Interface Selections : D = Advanced Indicator, None Ext Zero, Span & Config Buttons, EN, GE, FR, IT, SP, RU, TU languages.
  • Product No. :__TD870-F1AS4AS-1-C-FHD-11S-B-01A7-F1-0000
  • Application Software : 1 = Standard Diagnostics
  • Output Limit, Failsafe & Write Protect Settings : 1 = Disabled Write Protect, High> 21.0mAdc Fail Mode, Honeywell Std (3.8 - 20.8 mAdc) High & Low Output Limits.
  • General Configuration : S = Factory Standard
  • Accuracy and Calibration : B = Standard accuracy, Custom (Unit Data Required) Calibrated Range, Single Calibration
  • Mounting Bracket : 0 = None Bracket Type and material
  • Customer Tag :_1 = One Wired Stainless Steel Tag (Up to 4 lines 26 char/line)
  • Unassembled Conduit Plugs & Adapters : A7 = M20 316 SS Certified Conduit Plug
  • Certifications & Warranty : F1 = Calibration Test Report & Certificate of Conformance (F3399)
  • Factory : 0000 = Factory Identification
  • Shipping Weight : 6 Kg
