STD725-E1HS4AS-1-A-AH0-11S-B-10A0

Estimated Lead Time : In stock. Usually ships in 7-10 working days

Manufacturer : Honeywell

Product No. : STD725-E1HS4AS-1-A-AH0-11S-B-10A0

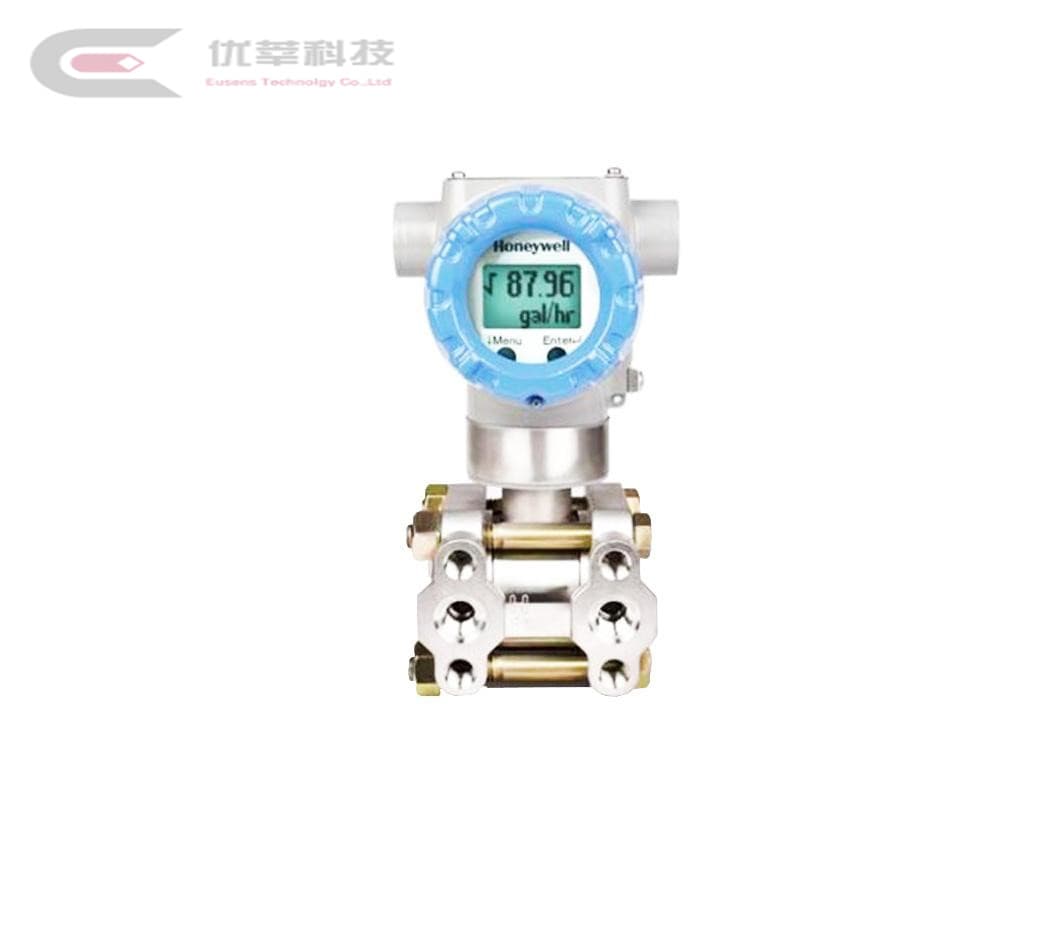

Product type : STD700 Differential Pressure Transmitter

Process wetted heads & diaphragm materials : E = 316 Stainless Steel & Hastelloy C-276

Fill fluid : 1 = Silicone oil 200

Process connection : H = 1/2" NPT female,materials to match head & head bolt materials selections

Bolt/nut materials : S = 316 SS

Vent/drain type/location : 4 = Head type;dual ended , Vent type;Standard vent , Location;End , Vent material;Matches head material

Gasket material : A = Teflon搴 or PTFE (glass filled)

Static pressure : S = Standard static pressure - 4500 psig (315 bar)

Head/connect orientation : 1 = Standard;High side left, low side right2 / std head orientation

Approvals : A = FM explosion proof, intrinsically safe, non-incendive, & dustproof

Electronic housing material & connection type : A = Material;Polyester powder coated aluminum , Connection;1/2 NPT , Lightning protection;None

Output/protocol : H = Analog output;4-20mA dc , Digital protocol;HART protocol

Customer interface selections : 0 = Indicator;None , Ext zero, span & config buttons;None , Languages;None

Application software : 1 = Standard diagnostics

Output limit,failsafe & write protect settings : 1 = Write protect;Disabled , Fail Mode;High> 21.0mAdc , High & low output limits;

Honeywell Std (3.8 - 20.8 mAdc)

General configuration : S = Factory standard

Accuracy and calibration : B = Accuracy;Standard , Calibrated range;Custom (Unit Data Required) , Calibration qty;Single Calibration

Mounting braket : 1 = Bracket type;Angle bracket , Material;Carbpon steel

Customer tag : 0 = No customer tag

Unassembled coduit plugs & adapters : A0 = No conduit or adapters required

Shipping Weight : 6Kg
