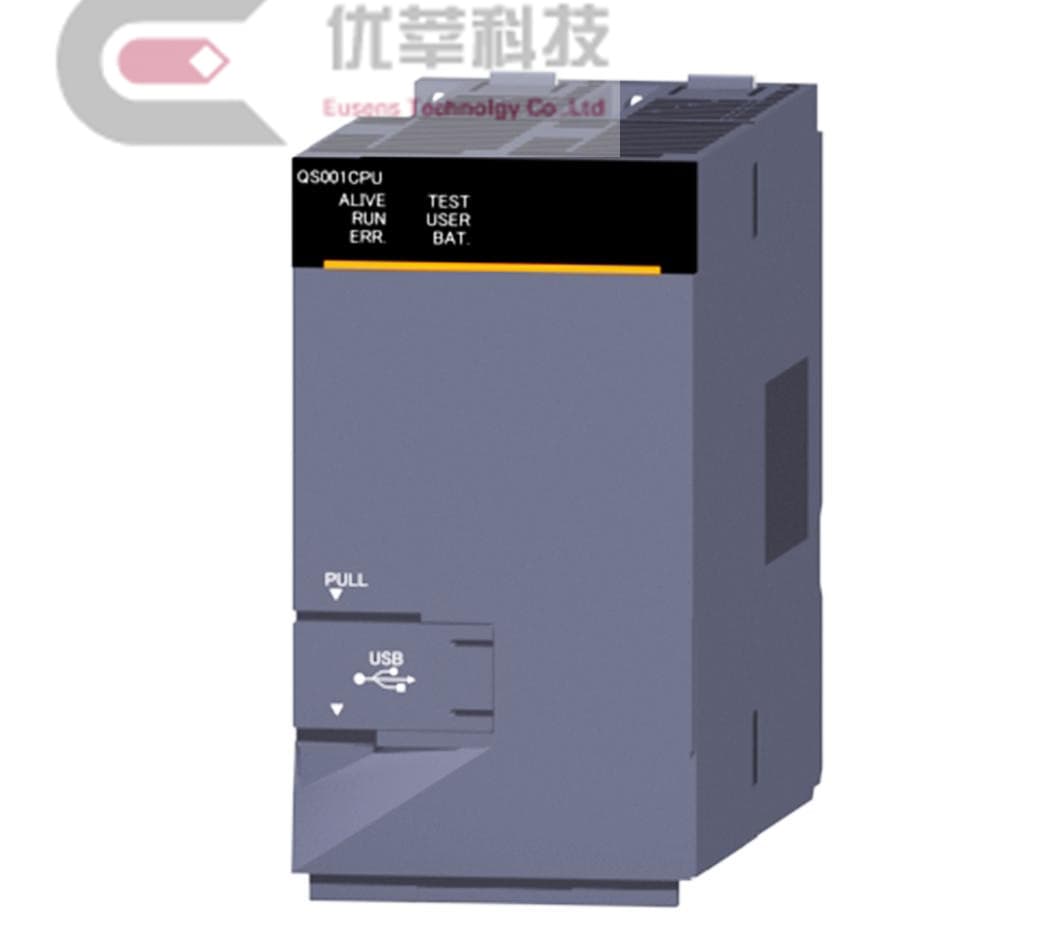

Safety CPU Unit QS001 CPU

Product Description

  • Estimated Lead Time : In stock. Usually ships in 7-10 working days.
  • Manufacturer : Mitsubishi Electric
  • QS001CPU
  • Safety CPU Unit QS001 CPU
  • control method : Stored program iteration operation
  • Input / output control method : Refresh method
  • Programming language Sequence control language : Relay symbol word, function block
  • processing speed Sequence instructions LD X 0 : 0.10 娓_
  • MOV D 0 D 1 : 0.35 娓_
  • Constant scan : 1 ~ 2000 ms (Can be set in 1 ms increments)
  • Program capacity : 14K steps (56 KB)
  • Memory capacity Program memory (drive 0) : 128 KB
  • Standard ROM (Drive 4) : 128 KB
  • Maximum number of stored files Program memory : 3
  • Standard ROM : 3
  • Number of standard ROM writes : Up to 100,000 times
  • Number of input / output devices : 6144 points (X / Y 0 to 17 FF)
  • Number of input / output points : 1024 points (X / Y 0 to 3 FF)
  • Number of device points Internal relay [M] : Default 6144 points (M0 to 6143) (changeable)
  • Link relay [B] : Default 2048 points (B 0 - 7 FF) (changeable)
  • Timer [T] : Default 512 points (T0 to 511) (Shared with low-speed timer / high-speed timer) (Changeable) Low-speed timer / high- speed timer specified by instruction Low-speed timer / high-speed timer measurement unit is set by parameter (low-speed timer: 1 to 1000 ms, 1 ms increment, default 100 ms) (High-speed timer: 0.1 to 100.0 ms, 0.1 ms increments, default 10.0 ms)
  • Integration timer [ST] : Default 0 point (Shared with low speed integration timer / high speed integration timer) (Changeable) Low speed integration timer / high speed integration timer specified by instruction Set the measurement unit of low speed integration timer / high speed integration timer by parameter (low speed integration timer: 1000 ms, 1 ms increment, default 100 ms) (High-speed integration timer: 0.1 to 100.0 ms, 0.1 ms increments, default 10.0 ms)
  • Counter [C] : Normal counter: default 512 points (C 0 to 511) (changeable)
  • Data register [D] : Default 6144 points (D 0 to 6143) (changeable)
  • Link register [W] : Default 2048 points (W 0 to 7 FF) (changeable)
  • Annunciator [F] : Default 1024 points (F0 to 1023) (changeable)
  • Edge relay [V] : Default 1024 points (V 0 to 1023) (changeable)
  • Link special relay [SB] : 1536 points (SB 0 to 5 FF) (Device number is fixed)
  • Link special register [SW] : 1536 points (SW 0 to 5 FF) (the number of device points is fixed)
  • Special relay [SM] : 5120 points (SM 0 to 5 119) (the number of device points is fixed)
  • Special register [SD] : 5120 points (SD 0 to 5119) (the number of device points is fixed)
  • RUN / PAUSE contact : One RUN contact can be set from X 0 to 17 FF P PAUSE No contact
  • Clock function : Accuracy: -3.18 to +5.25 s (TYP. + 2.14 s) / d at 0 _ C Accuracy: -3.18 to +2.59 s (TYP. + (Year), month, day, hour, minute, 2.07 s) / d at 25 _ C Accuracy: -12.97 to + 3.63 s (TYP. -3.16 s) / d at 55 _ C
  • Allowable momentary power failure time : Depends on power supply unit
  • DC 5 V Internal current consumption : 0.58 A
  • External dimensions Height (H) : 98 mm
  • Width (W) : 55.2 mm
  • Depth (D) : 114 mm
  • mass : 0.29 Kg
  • Protection grade : IP2X
  • Operating ambient temperature : 0 to 55 _ C
  • Storage ambient temperature : -40 to 75 _ C
  • Ambient operating humidity : 5 to 95% RH, non condensing
  • Storage ambient humidity : 5 to 95% RH, non condensing
  • Anti-vibration Meets JIS B 3502, IEC 61131-2 When there is intermittent vibration : Frequency: 5 to 8.4 Hz, One amplitude: 3.5 mm Frequency: 8.4 to 150 Hz, Constant acceleration: 9.8 m / s 2 Sweep count: 10 times in X, Y, Z directions
  • When there is continuous vibration : Frequency: 5 to 8.4 Hz, One amplitude: 1.75 mm Frequency: 8.4 to 150 Hz, Constant acceleration: 4.9 m / s 2
  • Impact resistance : Meets JIS B 3502, IEC 61131-2 (147 m / s 2 , working time 11 ms, three times in XYZ three directions with sine half-wave pulse)
  • Use atmosphere : No corrosive gas
  • Use elevation : 0 to 2000 m
  • Installation location : In the control panel
  • Over voltage category : II or less
  • Pollution degree : 2 or less
  • Device class : Class I
  • Shipping Weight : 1.3 Kg
