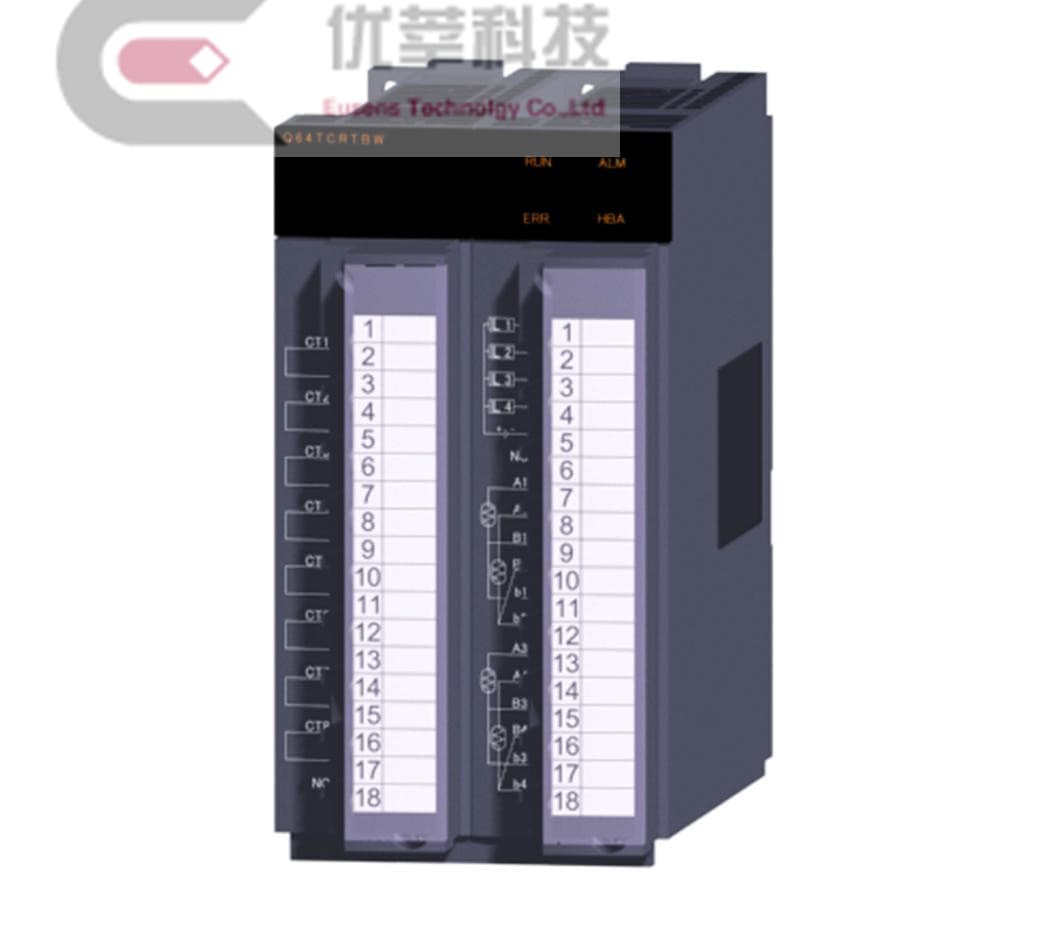

Temperature control unit Q64TCRTBW

Product Description

  • Estimated Lead Time : In stock. Usually ships in 7-10 working days.
  • Manufacturer : Mitsubishi Electric
  • Q64TCRTBW
  • Temperature control unit Q64TCRTBW
  • Control output : Transistor output
  • Number of temperature input points : 4 channels / unit
  • Usable resistance temperature detector : Pt 100, JPt 100
  • accuracy Instruction accuracy Ambient temperature: 25 _ 5 _ C : Full scale X (_ 0.3%)
  • Ambient temperature: 0 to 55 _ C : Full scale X (_ 0.7%)
  • Sampling cycle : 500 ms / 4 channels
  • Control output period : 1 to 100 s
  • Input impedance : 1 M_
  • Input filter : 0 to 100 s (0: input filter OFF)
  • Sensor correction value setting : -50.00 to 50.00%
  • Operation at sensor input disconnection : Upscale processing
  • Temperature control system : PID ON / OFF pulse or 2 position control
  • PID constant range PID constant setting : Setting by auto tuning is possible
  • Proportional band (P) : 0.0 to 1000.0% (0.0: 2 position control)
  • Integration time (I) : 1 to 3600 s
  • Differential time (D) : 0 to 3600 s (0: PI control)
  • Target value setting range : Within the temperature range set by the platinum resistance bulb to be used
  • Dead band setting range : 0.1 to 10.0%
  • Transistor output Output signal : ON / OFF pulse
  • Rated load voltage : 10 to 30 VDC
  • Maximum load current : 0.1 A / 1 point, 0.4 A / 1 common
  • Maximum inrush current : 0.4 A, 10 ms
  • Leakage current at OFF : 0.1 mA or less
  • Maximum voltage drop during ON : DC 1.0 V (TYP.) 0.1 A, DC 2.5 V (MAX.) 0.1 A
  • Response time OFF ??ON : 2 ms or less
  • ON ??OFF : 2 ms or less
  • Insulation method : Input and ground, between input channels: Transformer insulation
  • Withstand voltage : Between input and ground, between input channels: 500 VAC for 1 minute
  • Insulation resistance : Between input and ground, between input channels: DC 500 V 20 M_ or more
  • Heater disconnection detection specification Current sensor : CTL - 6 - P (0.00 to 20.00 A) CTL - 6 - PH (0.00 to 20.00 A) CTL - 12 - S36 - 8 (0.0 to 100.0 A) produced by Earl Dee Co.,
  • Input accuracy : Full scale X (_ 1.0%)
  • Number of alarm delay times : 3 to 255
  • External wiring connection method : 18 point screw terminal block (M3 screw) X 2
  • Number of occupied I / O points : 32 points, 2 slots (I / O assignment: 16 free points + 16 points of intelligence)
  • DC 5 V Internal current consumption : 0.64 A
  • External dimensions Height (H) : 98 mm
  • Width (W) : 55.2 mm
  • Depth (D) : 112 mm
  • mass : 0.30 Kg
  • Shipping Weight : 1.3 Kg
