FR-A840-00083-2-60

FR-A840-00083-2-60

Mitsubishi
$413.10

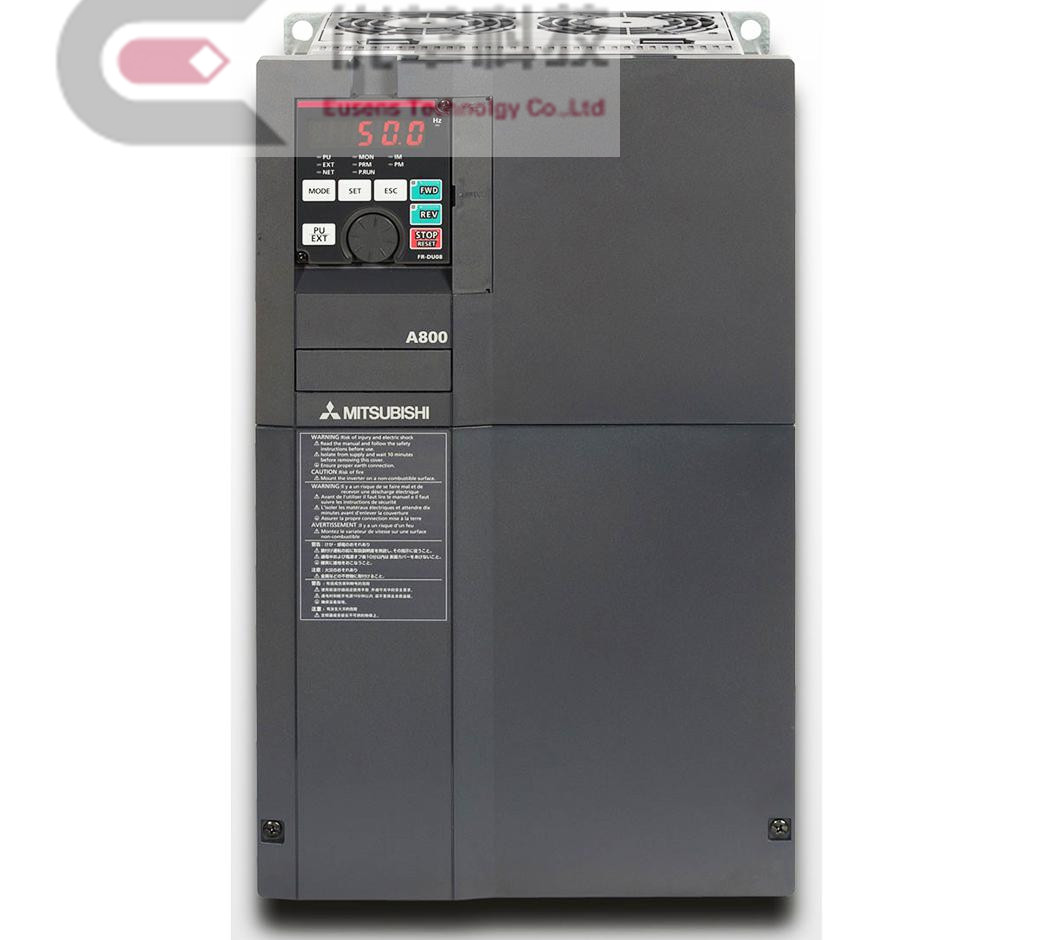

FR-A840-00083-2-60 -- Mitsubishi Electric -- Inverter Drive

Product Description

  • Estimated Lead Time : 7 - 10 working days.
  • Manufacturer : Mitsubishi Electric
  • Product No. : FR-A840-00083-2-60
  • Product type_ : Inverter Drive
  • Power (kW) : 2.2
  • Current (Amps) : 6
  • IP rating : 20
  • Voltage : 400/415V AC
  • Phases : Three phase
  • Backwards compatible with FR-A700 range
  • Applicable to winding, crane, machine tool and conveyor systems
  • Closed loop vector control up to 400 Hz
  • Real_ sensorless vector control up to 400 Hz
  • Improved positioning functionality
  • Compatible with SSCNet
  • High energy efficiency - Optimum excitation control can save an extra 10-12%
  • 24VDC can be supplied to the control circuit for access to parameters, communication
  • New USB (A type) port added for parameter copying
  • 5 & 12 segment display (FR-DU08) and multiple-language LCD display (FR-LU08)
  • Built-in brake chopper on models up to 55kW
  • Shipping Weight : 5 Kg
