E5CN-HQ2M-500-AC100-240

E5CN-HQ2M-500-AC100-240

Omron
$233.10

Omron-E5CN-HQ2M-500-AC100-240

Product Description

  • Even though we have this part in stock, it may take several days for internal process to complete. Goods will be delivered within 4-6 Weeks.

  • E5CN-HQ2M-500-AC100-240

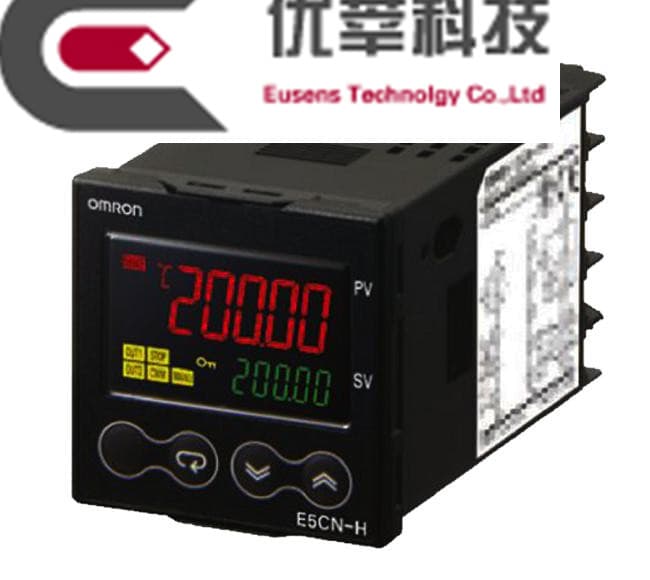

  • E5CN-H 1/16 DIN Temperature Controllers
  • An advanced, high-performance controller: High Resolution, High Speed, and High Input Accuracy, with Logic Operations and preventive
  • maintenance functions.
  • High-speed sampling cycle of 60 ms
  • Thermocouple/Pt input: _0.1% of PV
  • Analog input: _0.1% FS
  • Universal inputs on all models (thermocouple, PT, analogue) to handle various sensors with one controller
  • A PV/SV-status display function can be set to alternate displaying the PV or SV and the status of the temperature controller (auto/manual, RUN/STOP and alarms)
  • Flexible contact outputs with logic operations (AND, OR, and delays) set from the Support Software (CX-Thermo Ver. 4.0)
  • Preventive maintenance for relays using a Control Output ON/OFF Counter
  • High resolution display with 5 digits/0.01__ display
  • CAD Drawing: 3D CAD Model
  • Input Type: Current, Platinum Resistance Thermometer, Thermocouple, Voltage
  • Maximum Operating Temperature +55__
  • Minimum Operating Temperature -10__
  • Panel Depth: 78mm
  • Size: 48 x 48mm
  • Shipping Weight : 1 Kg
