E5CC-QX2AUM-800

E5CC-QX2AUM-800

Omron
$103.50

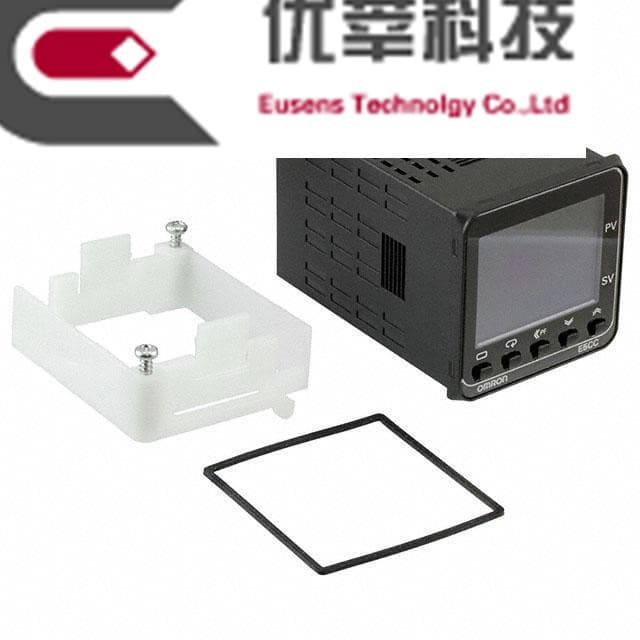

E5CC-QX2AUM-800 --Omron--Omron E5CCQX2AUM800 Digital Temperature Controller, -200 to 2300 deg C

Product Description

  • Estimated Lead Time : In stock. Usually ships in 7-10 working days
  • Manufacturer : Omron
  • Series : E5CC-800
  • Brand Name : Omron
  • MFR Part Number : E5CCQX2AUM800
  • UNSPSC : 41112215
  • Item : Digital Temperature Controller
  • Control Range : -200 to 2300 deg C
  • Sensor Type : K, J, T, E, L, U, N, R, S, B, W or PL II
  • Type Thermocouple, Pt100 or JPt100
  • Type Platinum Resistance
  • Thermometer and ES1B Type Infrared
  • Temperature Sensor
  • Control Mode : ON/OFF or 2-PID With Auto-Tune
  • Control Period : 0.1, 0.2, 0.5, 1 - 99 sec
  • Accuracy : +/-0.3% Thermocouple, +/-0.2%
  • Platinum Resistance Thermometer, +/-0.2% Analog Input
  • Proportional Band : 0.1 - 999.9 deg C Temperature Input, 0.1 - 999.9% Analog Input
  • Output : Voltage (12 VDC)
  • Power Consumption : 6.5 VA
  • Voltage Rating : 100 - 240 VAC
  • Display : 11-Segment Digital
  • DIN Type : 1/16 in
  • Electrical Connection : Plug-In Connector
  • Mounting Type : Panel
  • Enclosure Type : IP66 Front Panel, IP20 Rear, IP00 Terminal
  • Color : Black
  • Dimensions : 48 mm Height x 48 mm Width
  • Standard/ApprovalsUL 61010-1, c : ULus Listed, CE Certified, EN 61010-1
  • Application : Packaging Machine, Molding Machine and Continuous Combustion Furnaces
  • Shipping Weight : 2 Kg
