Product Description

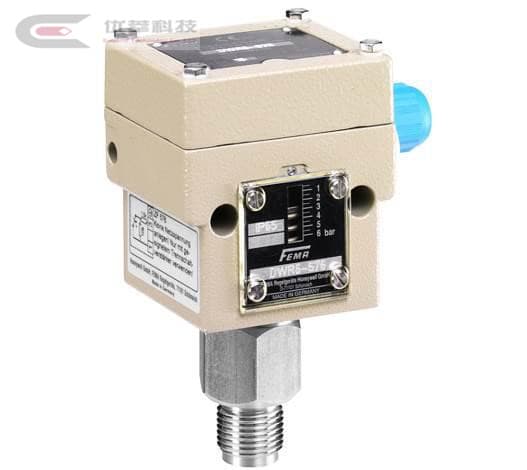

Estimated Lead Time: 6-8 WeeksManufacturer: FEMADWAM32-213FEMA Maximum pressure monitor of 'special construction' (DA)Maximum pressure monitor with selfmonitoring sensor for steam and hot waterKind of pressure: overpressure, relativePressure connection: internal thread G1/4, external thread G1/2Electrical connection: Plug DIN EN 175301Protection class: IP54Housing material: rugged housing of seawater resistant aluminium die casting GD Al Si 12Sensing element material: 1.4104 + 1.4571Media temp.: -20...70CMedia temp. limit: temperatures up to 85 __ are allowable for short periods. Higher temperatures are possible, provided that the limit is safeguarded by suitable measures (e.g. water tube trap, see Accessories for Pressure Switches / Transmitters)Ambient temperature: -20...70CAmbient temp. limit: at temperatures below 0 __, ensure that no water condensation can arise in the sensor and in the switching deviceSwitch function/capacity: SPDT Microswitch 250 Vac; capacity 5 A inductive, 8 A resistiveOptional functions: add the type numbers below to the listed type numbers for extra functionality as described -213: gold-plated contacts, switching capacity: max. 24 Vdc, 100 mA, min. 5 Vdc, 2 mA. And others not available with adjustable switching difference. -301: terminal connection housing, IP65 -513: Gold-plated contacts, single-pole switch-over. Switching differential permanent. IP65. Switching capacity: max. 24 Vdc, 100 mA, min. 5 Vdc, 2 mA, suitable isolating switching amplifier necessary, degree of protection Ex-iCertificates: TUEV-DW-15-132 for DWAM ...according VdTUEV Memorandum Pressure 100, Issue 07.2006, DIN EN 12952-11, Issue 09.2007 and DIN EN 12953-9, Issue 09.200701 202 931-B-11-0001 according Directive 97/23 ECSIL2 according IEC 61508-2Shipping Weight : 2 Kg
