DBC2000E2019

DBC2000E2019

Honeywell
$549.00

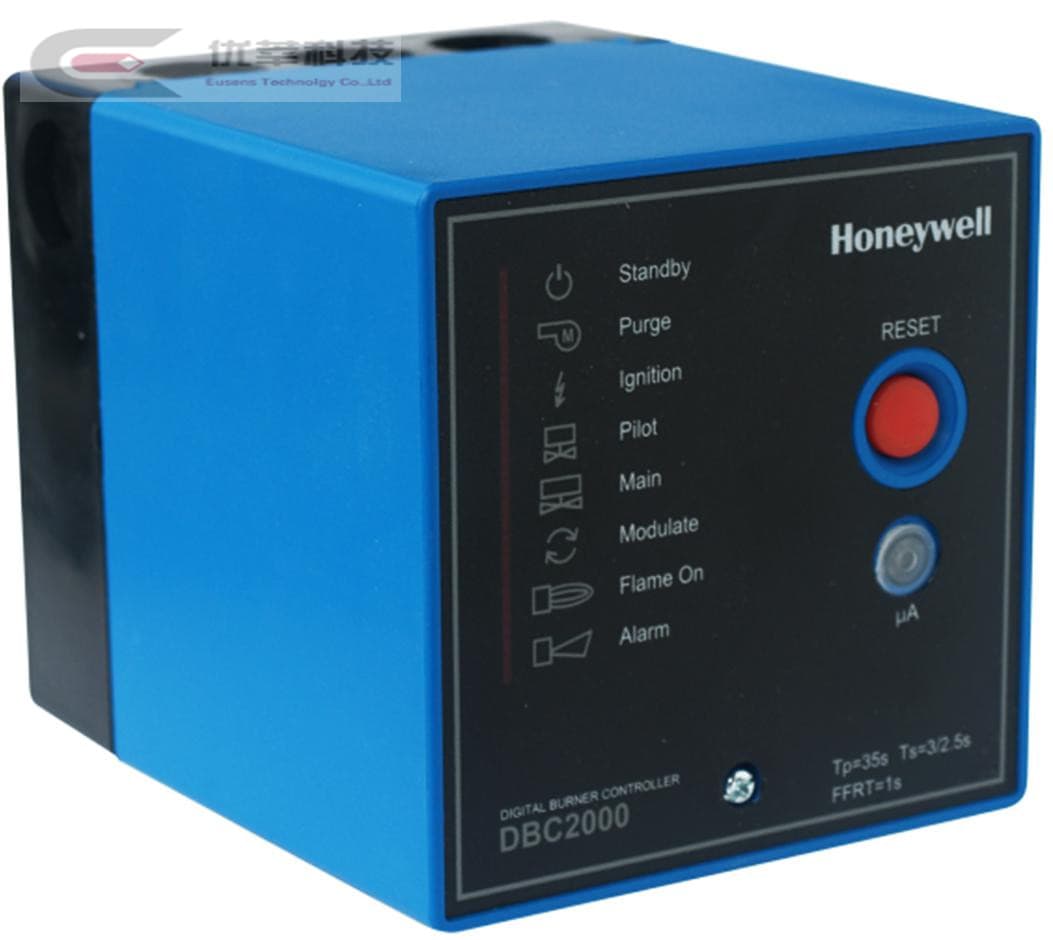

DBC2000E2019 -- Honeywell -- DIGITAL BURNER CONTROLLER, Enhanced model, 230Vac 50/60Hz, UV/FR unified, IP40, Total load max 8A on set, Contact rating: 3A @ cos?=0.6, CE certification to standard EN298:2003, Integrated VPS function

Product Description

  • Estimated Lead Time: 6-8 Weeks
  • Manufacturer: Honeywell
  • DIGITAL BURNER CONTROLLER, Enhanced model,230Vac 50/60Hz, UV/FR unified, IP40, Total load max8A on set, Contact rating: 3A @ cos?=0.6, CE certification to standard EN298:2003, Integrated VPS function
  • DBC2000E2019
  • Honeywell Burner Controls DBC2000-series
  • The Honeywell DBC2000 is a microprocessor-based integrated burner controller for automatically fired gas, oil or combination fuel industrial single burner power burner applications.
  • The DBC2000 system consists of the relay module and wiring subbase.
  • The Standard Model provides the minimum requirements to control an industrial burner system; the Enhanced Model includes an integrated Valve Proofing System; the Ultimate model includes bus communication on top of this.
  • For all type of burners with unlimited capacity in intermittent operation.
  • An integrated timer assures an automated recycle sequence after ca 24h uninterrupted heat demand.
  • Approvals:CE approved according EN298 for intermittent operation (when used with correct flame sensor).
  • AGA certified
  • GOST Listed
  • Protection class:IP40
  • Ambient temperature:-10...60C
  • Maximum humidity:90%rh
  • DBC2000 models have two integrated flame amplifiers:UV Power Tube (UV) and Rectification (FR), that are selectable by a jumper at the back of the unit.
  • Default is FR (jumper present). Applicable flame sensors:
  • Flame rod (FR)
  • UV sensor family C7027/35/44 (UV)
  • UV sensor family C7012A/G (FR)
  • IR sensor family IRD820/1020 (FR)
  • Note:Extra features:
  • Integrated 24h auto recycle timer
  • Selectable Pilot or Direct Main Burner Ignition operation.
  • Selectable post-purge (15s) or no-post-purge (0s) operation.
  • Control model:Full
  • Outputs:HF/LF/Modulate
  • Operation:24h auto-recycle
  • Pilot:Selectable intermittent / interrupted
  • Pilot ignition time:3s (Pilot only: 5s)
  • Main ignition time:3s
  • Post purge time:15/0s
  • Number of ignition attempts:1
  • Flame failure response time:<1s
  • Flame detector:UV/FR
  • 230Vac versions
  • Prepurge time:35s
  • Valve proofing system:Integrated
  • Comment: Enhanced Model
  • Shipping Weight: 3 Kg
