800H-QR24R

800H-QR24R

Allen Bradley
$120.60

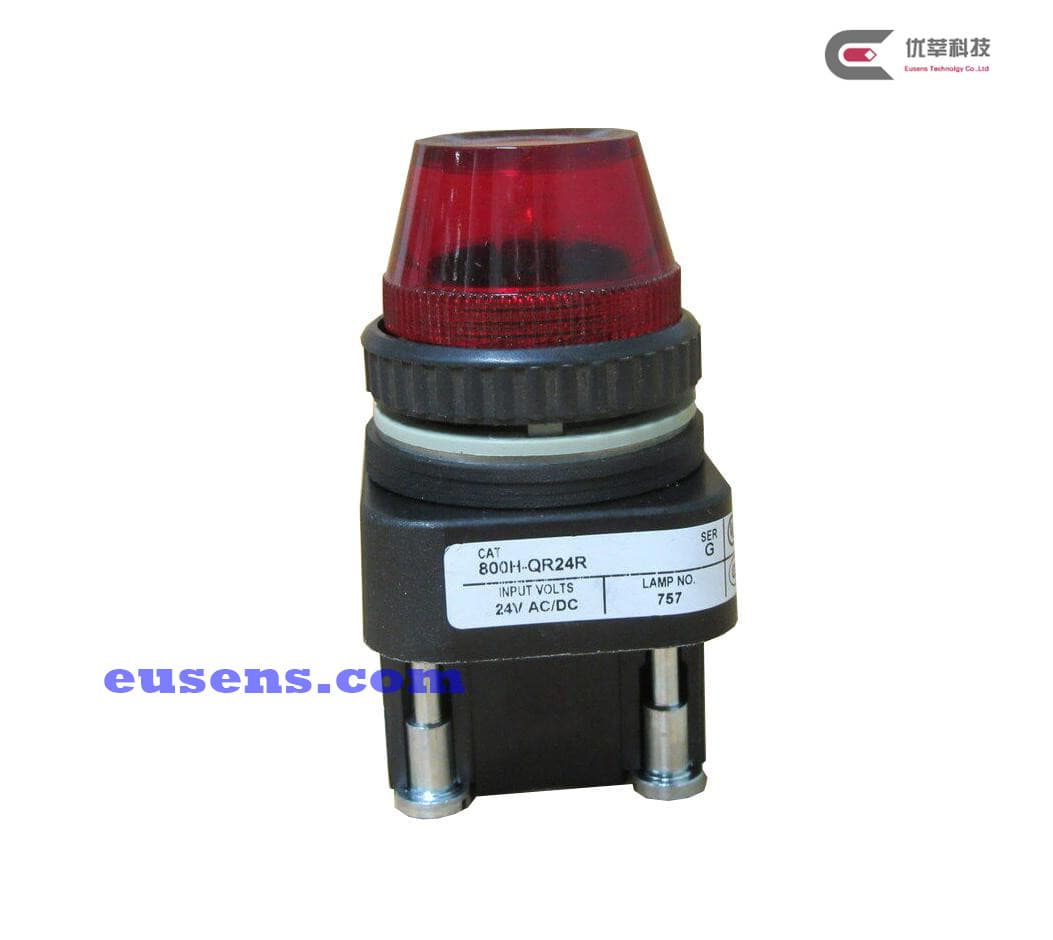

800H-QR24R -- Allen-Bradley -- Pilot Light Devices

Product Description

  • Estimated Lead Time : 8 - 10 weeks.
  • Manufacturer : Allen-Bradley
  • Product No. : 800H-QR24R
  • Product type : Pilot Light Devices
  • Protection Rating : H = Plastic, Type 4/4X/13
  • Power Module Type : QR = Full voltage/ Universal 800H Type 4/4X/13
  • Lamp Test Options : Blank = No test Options
  • Illumination Options : Blank = Incandescent
  • Full Voltage ??Incandescent : 24 = 24V AC/DC
  • Lens Color : R = Red
  • Contact Blocks (Push-to-test units only) : Blank = standard 1 N.O. - 1 N.C
  • Vibration : 10??000 Hz, 1.52 mm displacement (peak-to-peak) max./ 10 G max. (except Logic Reed)
  • Shock : 1/2 cycle sine wave for 11 ms = 25 G (contact fragility) and no damage at 100 G
  • Degree of protection : Type 1/4/12/13 (800T); Type 1/4/4X/12/13 (800H); EN/IEC 60529 IP66/65
  • Dielectric strength : 2200V for one minute, 1300V for one minute (Logic Reed)
  • Shipping weight : 2 Kg
